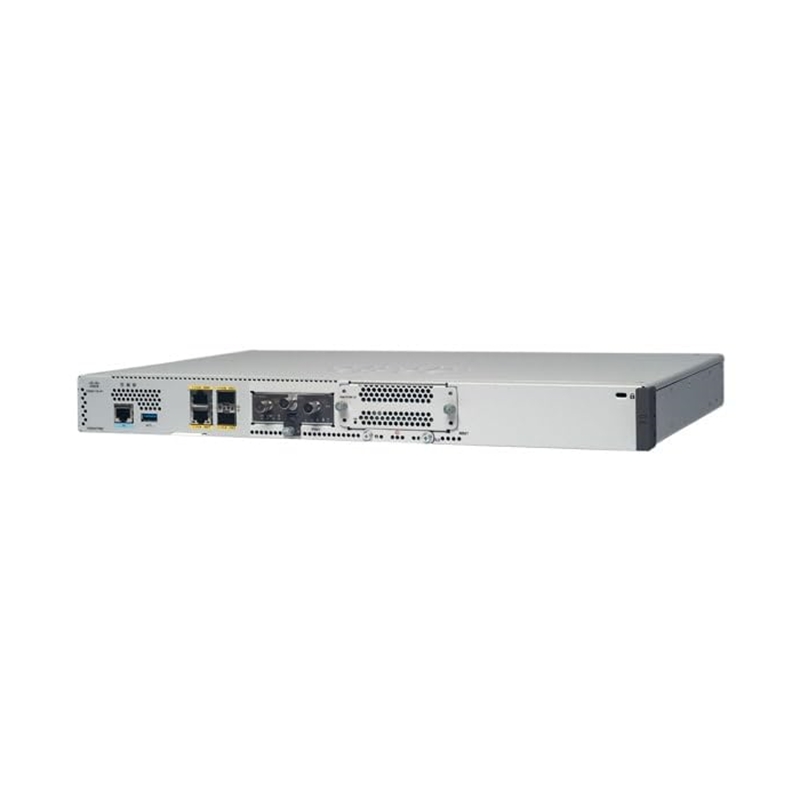

CISCO CATALYST C8200-1N-4T ROUTER – Cisco Catalyst 8200 Series Edge Platforms – Multicore processors-
? C8200-1N-4T uses an 8-core CPU with 8 GB DRAM memory default
? C8200L-1N-4T uses a 4-core CPU with 4 GB DRAM memory default
? High-performance multicore processors support high-speed WAN connections ? Dynamic core allocation architecture will repurpose unused cores into forwarding entities as per the user?s configuration
Embedded IPsec VPN hardware acceleration ? C8200-1N-4T enables up to 1 Gbps IPsec traffic ? C8200L-1N-4T enables up to 500 Mbps IPsec traffic ? Increases scalability for IPsec throughput requirements ? SSL and crypto hardware acceleration Integrated Gigabit Ethernet ports ? Provides four built-in Ethernet WAN ports ? Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity DRAM ? C8200-1N-4T ships with 8 GB DRAM ? C8200L-1N-4T ships with 4 GB DRAM ? C8200-1N-4T can be upgraded to 16 GB and 32 GB DRAM for higher scale and performance ? C8200L-1N-4T can be upgraded to 8GB, 16 GB and 32 GB DRAM for higher scale and performance Flash memory support ? Both models have an integrated onboard 8-GB flash which is not upgradable. M.2 storage provides flash upgrade options M.2 storage ? The C8200-1N-4T is shipped with default 16G M.2 storage and can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage ? The C8200L-1N-4T does not ship with a default M.2 storage but can be upgraded to 16G, 32G USB and to 600G M.2 Non-Volatile Memory Express (NVMe) Storage Power supply ? Both models use an internal, fixed AC power supply ? Power over Ethernet (PoE) is available as an option ? PoE ports added in the Network Interface Module (NIM) slot will require an additional external PoE power supply Modularity and form factor? 1-Rack Unit (1RU) form factor ? Supports NIM and Pluggable Interface Module (PIM) slots
