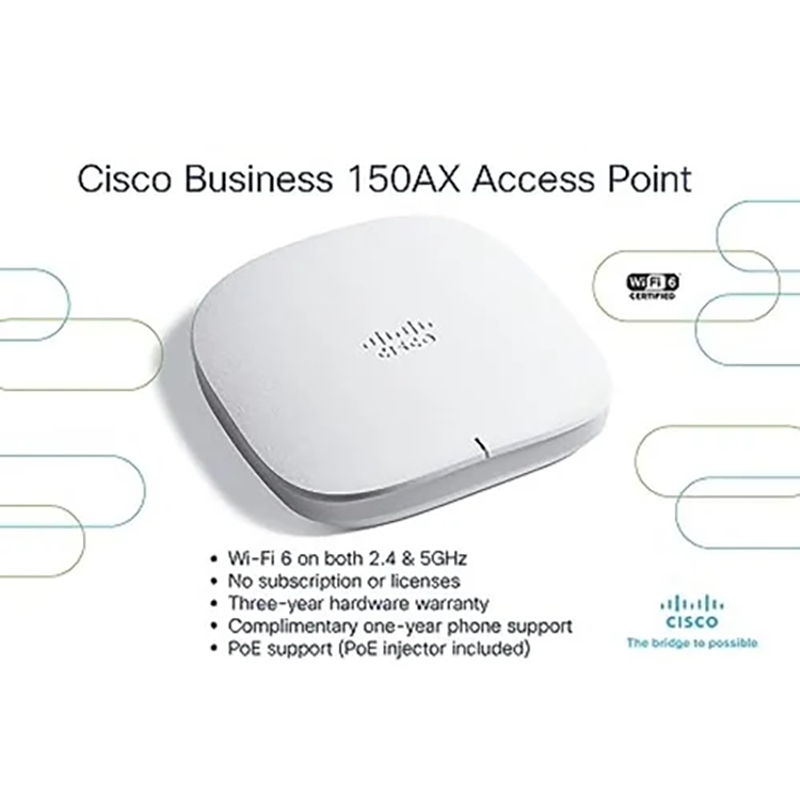

CISCO ACCESS POINT CBW 150 AXD-IN – Cisco Business 150AX Access Point – Authentication and security Wi-Fi Protected Access – with WPA2 or WPA3, including WPA2-Entperprise authentication ? 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA) ? Segmentation via VLANs (up to 16) ? 802.11r and 802.11i ? Guest network can also authenticate against a Social Login account: Google and Facebook Maximum clients ? Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system Maximum # of Access Points 50 ? Recommended up to 25 Max # of Mesh Extenders? Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops Management Compatibility ? A group of access points and mesh extenders comprised of only CBW150AX and CBW151AXM devices may be managed as a single entity. ? CBW150AX access points must not be installed on the same management network and CBW140AC or CBW240AC access points. ? CBW150AX and CBW151AXM devices are supported by Cisco Business Dashboard versions 2.4.1 and higher. 802.11ax ? 2×2 downlink MU-MIMO with two spatial streams ? Uplink/downlink OFDMA ? TWT ? BSS coloring ? MRC ? 802.11ax beamforming ? 20-, 40-, 80- channels ? PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) ? Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ? 802.11 DFS ? CSD support ? WPA3 support 802.11ac ? 2×2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz ? 20-, 40-, and 80-MHz channels ? Dynamic Frequency Selection (DFS) Ethernet ports ? Authentication with 802.1X or MAC filtered
? Dynamic VLAN or per port ? Traffic locally switched or tunneled back to Master AP
Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) 802.11ax data rates on 2.4 & 5GHz: 6.5 to 1200 Mbps (MCS0-MCS11) Integrated antenna 2.4GHz: peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: peak gain 5dBi, internal antenna, omnidirectional in azimuth
