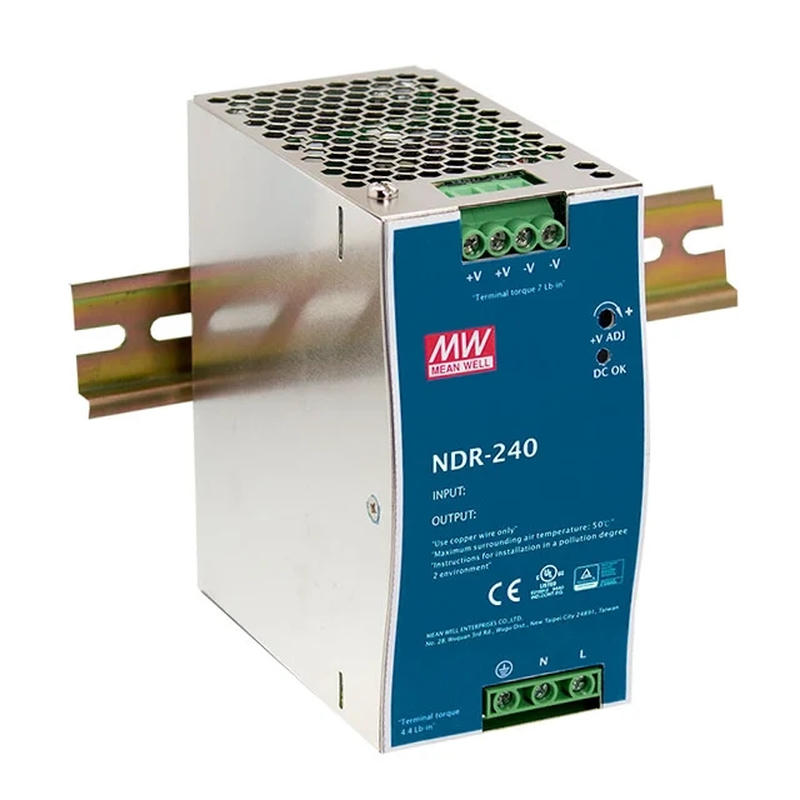

Series NDR-240 (240W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 90 ~ 264 VAC DC Voltage – Input (Min) 127V DC Voltage – Input (Max) 370V
Voltage – Output 1 48V – Current – Output (Max) 5A
Power (Watts) 240W Voltage – Isolation 3 kV
Applications Industrial, ITE (Commercial) Efficiency
90% Operating Temperature -20?C ~ 70?C (With Derating) Features Adjustable Output, PFC, Universal Input Size / Dimension 4.47″ L x 2.48″ W x 4.93″ H (113.5mm x 63.0mm x 125.2mm) Approval Agency
CB, CE, cULus, TUV Minimum Load Required
No Base Product Number NDR-240
