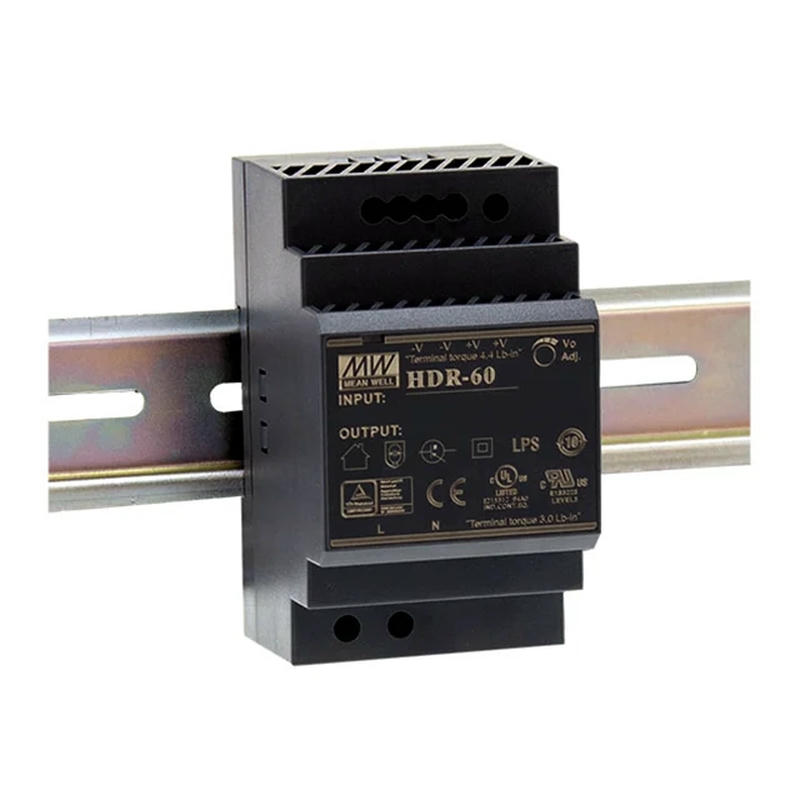

Series HDR-60 (60W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V DC Voltage – Input (Max) 370V
Voltage – Output 1 24V – Current – Output (Max)
2.5A Power (Watts) 60W Voltage – Isolation
4 kV Applications Industrial, ITE (Commercial)
Efficiency 90% Operating Temperature -30?C ~ 70?C (With Derating) Features Adjustable Output, Universal Input Size / Dimension 2.15″ L x 2.07″ W x 3.54″ H (54.5mm x 52.5mm x 90.0mm) Approval Agency
CB, CE, cULus, cURus, TUV Minimum Load Required
No Base Product Number HDR-60
