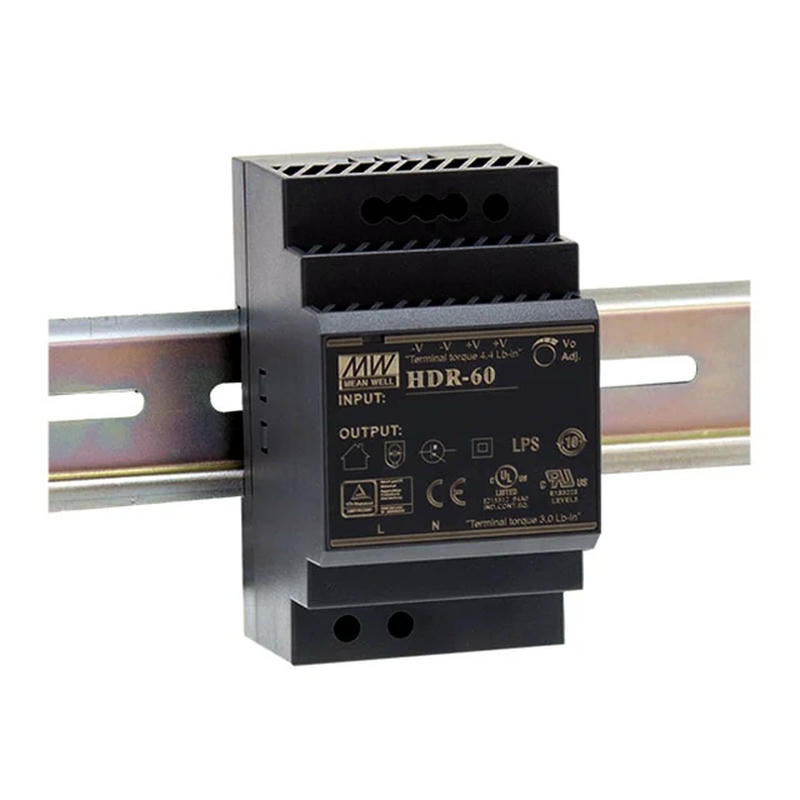

Series HDR-60 (60W) Packaging Box Part Status Active
Input Type AC or DC Number of Outputs 1 AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V
DC Voltage – Input (Max) 370V Voltage – Output 1
48V – Current – Output (Max) 1.25A Power (Watts)
60W Voltage – Isolation 4 kV Applications Industrial, ITE (Commercial) Efficiency 91% Operating Temperature
-30?C ~ 70?C (With Derating) Features Adjustable Output, Universal Input Size / Dimension 2.15″ L x 2.07″ W x 3.54″ H (54.5mm x 52.5mm x 90.0mm) Approval Agency
CB, CE, cULus, cURus, TUV Minimum Load Required
No Base Product Number HDR-60
