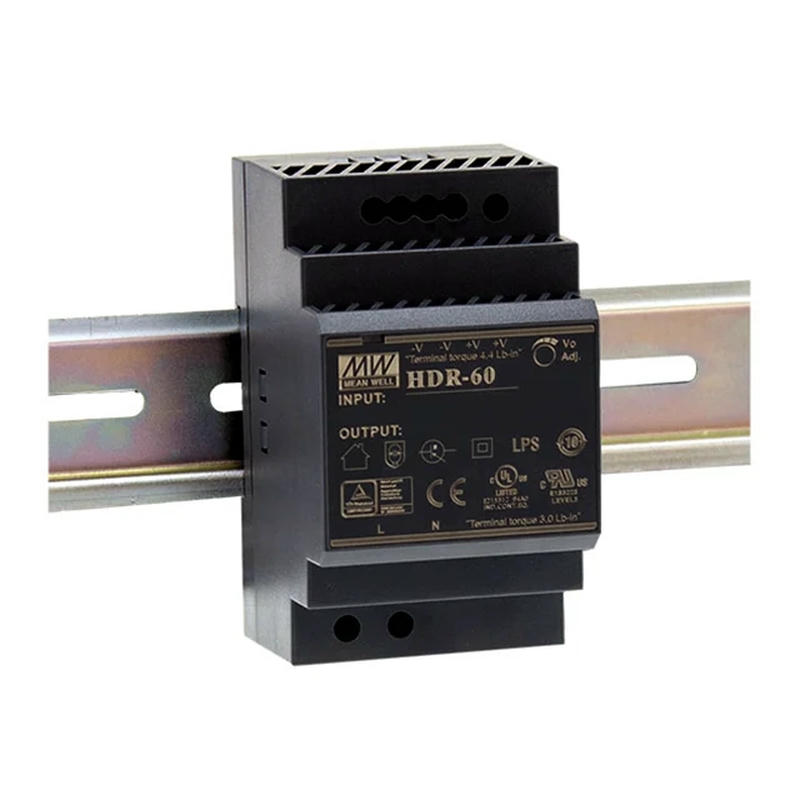

Series HDR-60 (60W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V DC Voltage – Input (Max) 370V Voltage – Output 1 5V – Current – Output (Max) 6.5A Power (Watts) 33W Voltage – Isolation 4 kV Applications
Industrial, ITE (Commercial) Efficiency 85%
Operating Temperature -30?C ~ 70?C (With Derating)
Features Adjustable Output, Universal Input
Size / Dimension 2.15″ L x 2.07″ W x 3.54″ H (54.5mm x 52.5mm x 90.0mm) Approval Agency CB, CE, cULus, cURus, TUV Minimum Load Required No Base Product Number HDR-60
