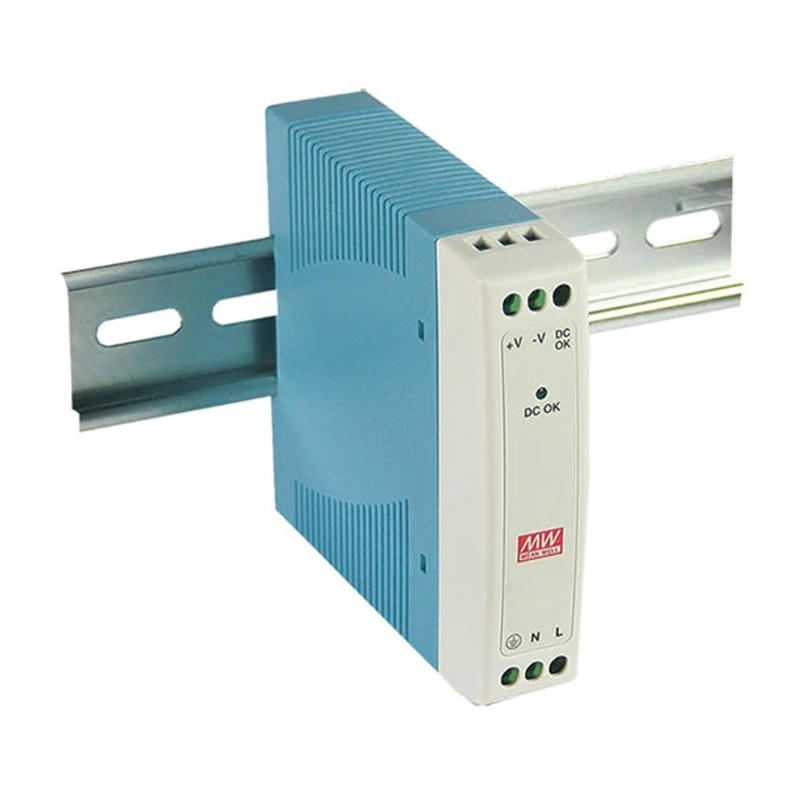

Series MDR-10 (10W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V DC Voltage – Input (Max) 370V
Voltage – Output 1 24V Current – Output (Max)
420mA Power (Watts) 10W Voltage – Isolation 3 kV
Applications Industrial, ITE (Commercial) Efficiency
84% Operating Temperature -20?C ~ 70?C (With Derating) Features Universal Input Size / Dimension
3.94″ L x 0.89″ W x 3.54″ H (100.0mm x 22.5mm x 90.0mm) Approval Agency CB, CE, cURus, TUV
Minimum Load Required No Base Product Number
MDR-10
