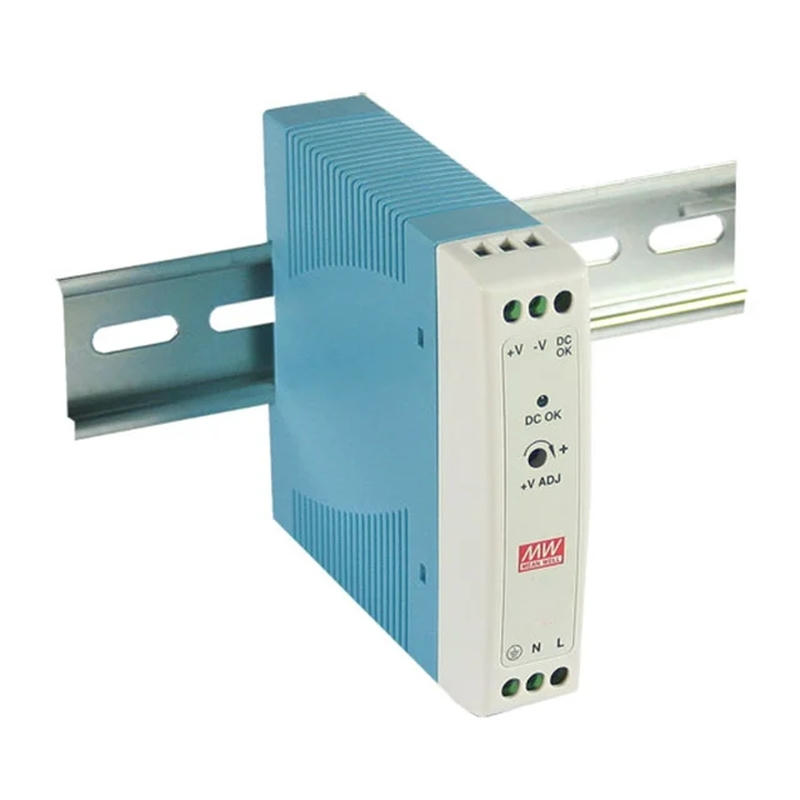

Series MDR-20 (20W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V DC Voltage – Input (Max) 370V Voltage – Output 1 5V – Current – Output (Max) 3A Power (Watts) 15W Voltage – Isolation 3 kV Applications Industrial, ITE (Commercial) Efficiency 76% Operating Temperature -20?C ~ 70?C (With Derating) Features
Adjustable Output, Universal Input Size / Dimension
3.94″ L x 0.89″ W x 3.54″ H (100.0mm x 22.5mm x 90.0mm) Approval Agency CB, CE, cULus, TUV
Minimum Load Required No Base Product Number
MDR-20
