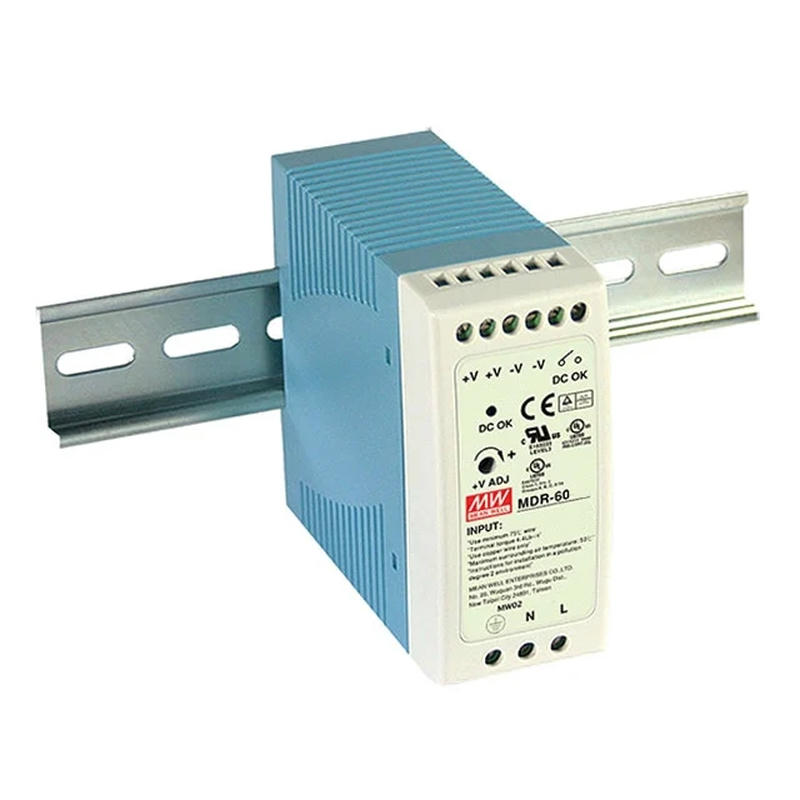

Series MDR-60 (60W) Packaging Box Part Status
Active Input Type AC or DC Number of Outputs 1
AC Voltage – Input 85 ~ 264 VAC DC Voltage – Input (Min) 120V DC Voltage – Input (Max) 370V
Voltage – Output 1 48V – Current – Output (Max)
1.25A Power (Watts) 60W Voltage – Isolation 3 kV
Applications Hazardous Locations, Industrial, ITE (Commercial) Efficiency 87% Operating Temperature
-20?C ~ 70?C (With Derating) Features Adjustable Output, Universal Input Size / Dimension
3.94″ L x 1.57″ W x 3.54″ H (100.0mm x 40.0mm x 90.0mm) Approval Agency CB, CE, cULus, cURus, TUV
Minimum Load Required No Base Product Number
MDR-60
